Single Line LED Display

    <{$product.name}><{$product.name}><{$product.name}><{$product.name}>
<{$product.name}><{$product.name}><{$product.name}><{$product.name}>

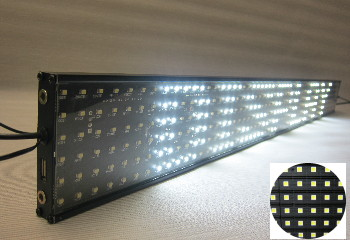

LED Keyboard Display

  • Compact & robust design
  • High brite SMD 3-in-1 LEDs
  • 160∘Viewing Angle
  • 10+ Display Functions

  • Product Description:

    They quickly display your messages in 10 display modes and 4 fonts' sizes, with ultra bright LEDs, together with built in Date/Time function.

    Key Features

    • Aluminum housing to minimize weight while ensuring a solid construction
    • Flat design reduces the external dimensions to a minimum
    • Optimal intensity and legibiltiy
    • Easy programing regular keyboard

    Mechanical Diagram


    Specification

    Item LKD-1400W-6x64W
    Voltage 12VDC - 36 VAC
    Current Consumption 12VDC @1A  or 24V @0.5A
    LED's SMD High Bright White LEDs
    Resolution 6H X 64L / dots
    Overall Dimension (HxLxD) 100H x 900L x 20D / mm
    Weight 1.6kgs
    Brightness > 4,000 CD/m²
    Viewing Angle 160∘
    Programming Interface Keyboard
    Scan Mode 1/5 Mode
    Fonts 4 Fonts
    Built in Temperature Sensor & Real Time Clock Chipset
    Memory Flashrom , 12 messages
    Characters Store 120 letters per message
    Display Method Scroll , Flash , Static , Ip , Down ...upto 10 moving ways
    Ambient Environment 20 to 70℃
    Humidity < 93% RH at + 40℃
    Vibration, Shock EN50155:1995 , EN661373
