Lamp Post Advertising Display

  • Extruded alumnum cabinet
  • Bright LEDs of long work life
  • 3G or 4G system are available
  • IP65 protection level

  • Product Description:

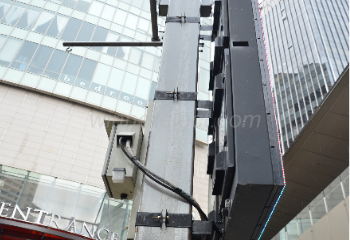

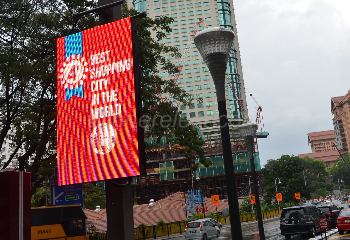

    Lamp Post Display is that they can be designed to operate outdoor, making them ideal to be mounted on lamp and pedestrian posts. It can be fitted into a water-proof housing which can withstand rain o

    Key Feature

    Easy installation and operation
    Quick Connection
    • High bright LEDs for outdoors

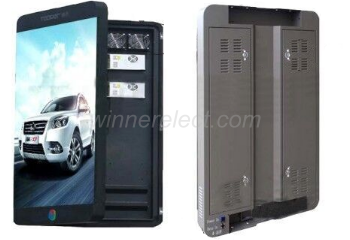

    Front Accessible

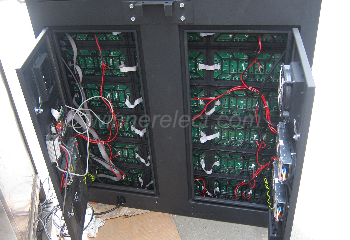

    • Back Maintenance

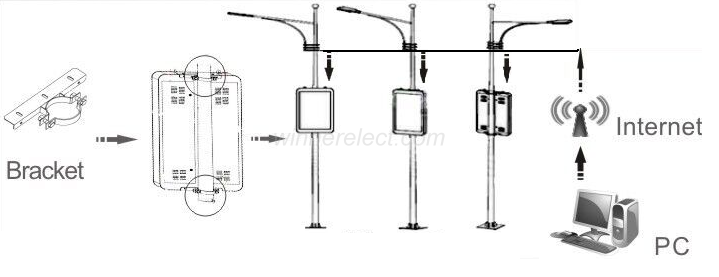

    Mechanical Diagram


    Specification

    Item Lamp Post Advertising LED Display
    Pitch 10mm
    Arrangement
    1R1G1B
    Brand
    Epistar
    Module Size
    320 x 160mm
    Module Resolution 32 x 16dots
    Cabinet Size
    1920 x 960 x 120mm
    Cabinet Resolution
    192 x 96dots
    Pixel Density 10000m2
    Brightness
    >6500cd/m2
    Module Resolution 16 x 16
    Maximum Brightness
    12000cd/m2
    Best View Distance
    8-10M
    View Angle (H) 120o (V)60o
    Signal Processing 16 bit
    Refresh Rate
    More than 3000Hz
    Maximum Power Consumption
    800w
