P13.33 Outdoor Full color Module

  • High brightness & broad viewing angle
  • brightness can be adjusted automatically or manually
  • Clear picture without flicker and distortion
  • Multiform file formats, such as VGA, Video..etc

  • Product Description:

    P13.33 led display with durable fresh color and high brightness by adopting high quality LEDs

    Key Features

    Ultra brightness LED and high quality plastic parts
    High contrast will reach excellent display effect
    Constant voltage mode drives LED, unform luminance, low power consumption
    Every pixel is composed of 1R1G1B
    Simple / Easy install & dismantle

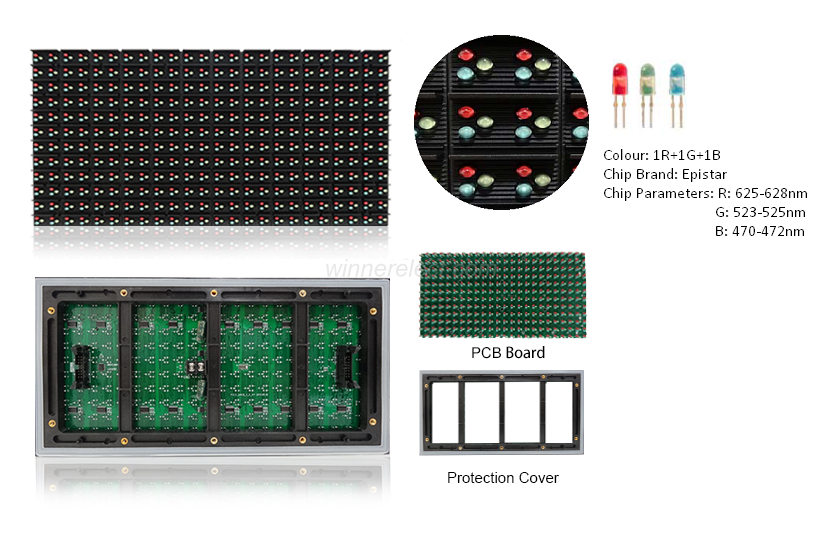

    Mechanical Diagram


    Specification

    Item P13.33 Outdoor Full color module
    Pixel Pitch
    13.33mm
    Resolution
    24x12 Dots
    Lamp configuration
    1R+1G+1B
    Brightness >=6,000 cd/m²
    Viewing Angle 110°(H), 55O(V)
    The maximum power consumption
    <=600 W/m2
    Best viewing distance
    10-200m
    Gray levels
    16 bit
    Power voltage 100~240Vac; 50~60 Hz
    Physical density
    5628 /m²
    Driving mode
    1/3 scans
    Life time (from 100%~0%)
    100,000 hrs
    Working temperature
    -15°C ~ 50°C
    Operating humidity
    15% ~ 85% RH
    Refresh rate
    1000 Hz
