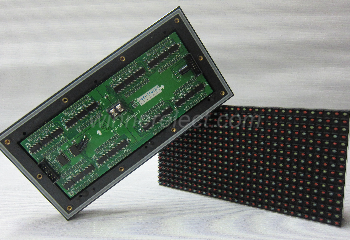

P16 Outdoor Full color Module

  • High brightness & broad viewing angle
  • brightness can be adjusted automatically or manually
  • Clear picture without flicker and distortion
  • Multiform file formats, such as VGA, Video..etc

    • Product Description:

    Competitive price P16 2R1G1B outdoor led display module with high performance, high quality and low power consump

    Key Features

    • Ultra brightness LED and high quality plastic parts
    • High contrast will reach excellent display effect
    • Constant voltage mode drives LED, inform luminance, low power consumption
    • Every pixel is composed of 1R1G1B
    • Simple / Easy install & dismantle

    Mechanical Diagram



    Specification

    Item P16 Outdoor Full color module
    Pixel Pitch
    		 16mm
    Resolution
    		 8X16 Dots
    Lamp Configuration
    		2R+1G+1B
    Brightness >=6,000 cd/m²
    Viewing Angle 120°
    The Maximum Power Consumption
    		 <=800 W/m2
    Best Viewing Distance
    		 10-200m
    Gray Levels
    		 16 bits
    Power Voltage 100~240Vac; 50~60 Hz
    Physical Density
    		 3,906 /m²
    Driving Mode
    		 1/4 scans
    Life time (from 100%~0%)
    		 100,000 hrs
    Working Temperature
    		 -20°C ~ +60°C
    Operating Humidity
    		 10% ~ 95% RH
    Refresh Rate
    		 10-3,000 Hz/s
