P6 LED Round Display

  • Good Quality Plastic
  • HD photograph
  • High IP Rating IP65, Safety and Reliable
  • Ultra Thin Cabine

  • Product Description:

    P6 Round LED Display Screen module is made up SMD3535 which consists of Red LED\Green LED\Blue LED ,then be fixed to plastic kit.

    Key Features

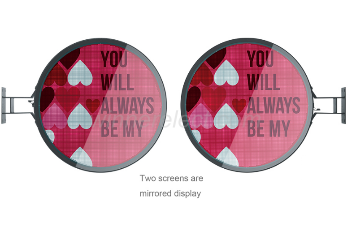

    • Round light box, fashion streamline circle, can perfectly display circular LOGO, text, pictures, animation and video

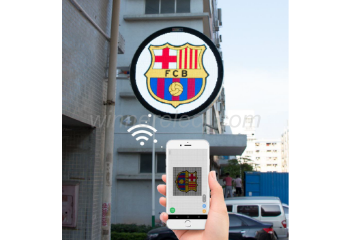

    Support WIFI, USB CAble, and USB disk COntrol
    • ROM 4BG, could store 3000 photos, 300 short video
    • Adopting outdoor SMD water-proof LED chips, Ip65
    • Soft rubber front surface to protect players
    Resulting in optimal pictures under any kinds of brightness environment

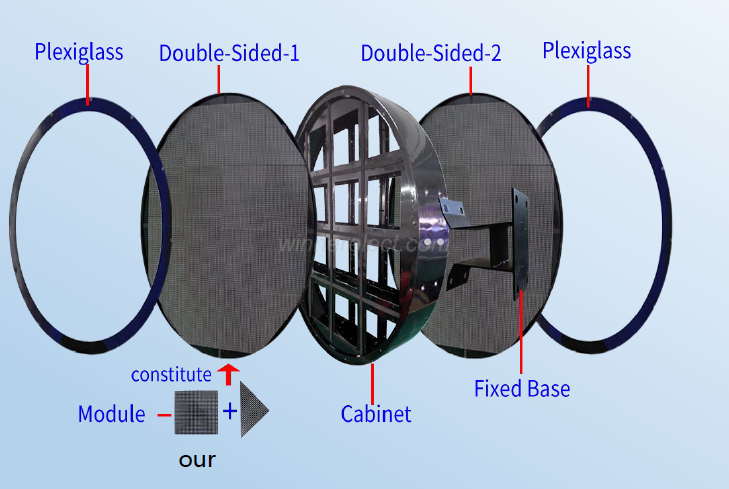

    Mechanical Diagram

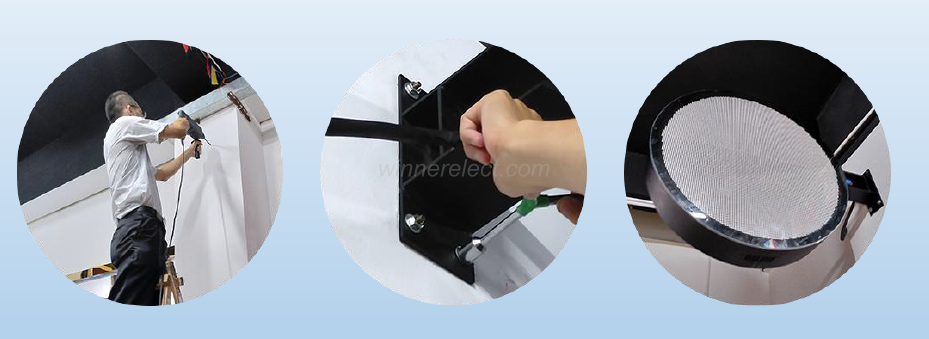

    Installation


    Simple and easy installation, only need 4 screws to fix.
    Wall mounted and Ceiling Mounted for choosing.



    Specification

    Item           RD-P6S                     RD-P6M

              RD-P6L

    Pixel Configuration SMD 2727 (3 in 1)
    Display Dimension (mm) 540 x 2 768 x 2

    1080 x 2

    Display Resolution (dot)

    90 x 90 x 2 128 x 128 x 2

    180 x 180 x 2

    Overall Dimension (mm)

    630 x 150 (T) 880 x 150 (T)

    1240 x 150 (T)

    Cabinet Weight (kg)

    20 32

    50

    Operation Temperature (oC)

    -30 ~ 50
    Brightness (cd/m2) >6000
    Refresh Frequency (Hz) >1920
    Input Voltage AC220V 50~60Hz / AC110V 60Hz

    Life (Hours)

    >100,000
    Average Power Consumption (w / m2) 120 ~ 180 200 ~ 300

    400 ~ 500

    Max Power Consumption (w / m2) <400 <600

    <1200

    Viewing Angle Horizontal >120o, Vertical >120o
    Protection IP65
