Single Line LED Display

    <{$product.name}><{$product.name}><{$product.name}><{$product.name}><{$product.name}>
<{$product.name}><{$product.name}><{$product.name}><{$product.name}><{$product.name}>

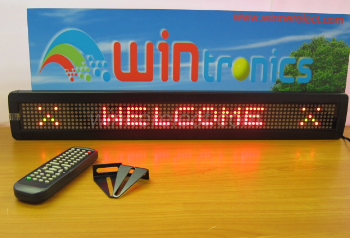

7X80 Indoor Display

  • Easy 3-step message entry
  • Wireless remote control

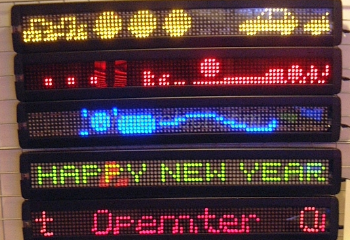

  • 10 true colors and 3 rainbow effects
  • Memory storage 7000 characters, up to 100 messages

  • Product Description:

    This single line series is designed for light industrial. Eye-catching effect for advertising or promotion messages of commercial and office use.Messages are enteres through a wireless remote or PC...

    Key Feature

    • Wireless remote control & PC programming
    • 10 true colors and 3 rainbow effects
    • Memory storage 7000 chars, up to 99 messages
    • 6 Messages, each of 250 characters
    • 8 built in animations and 7 font styles


    Mechanical Diagram

    Specification

    Item M500N-7x80RG2
    Pitch 7.62mm
    Resolution
    7X50 dots, 7X80 dots, 7X120 dots...etc
    Color Available Red or Tri color (16 color options with different effects)
    Programmable Supplied IR remote or RS232, RS422 or optional Ethernet adaptor
    Support Language
    English/ Russia/Europe..etc
    No Of Message 99 messages and storage 7000 characters
    Fonts 8 built in animations and 7 font styles
    Speed 8 display speed
    Function Schedule time and date or time display are available
    Fixing Methods Desk, wall or ceiling
    Power
    5VDC
    Size Available

    M500N-7X50 ~ 435(L) x 98(H) x 35(D)/mm

    M500N-7X80 ~ 660(L) x 98(H) x 35(D)/mm

    M500N-7X120 ~ 968(L) x 98(H) x 35(D)/mm
