LED Module

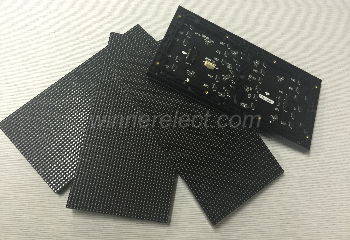

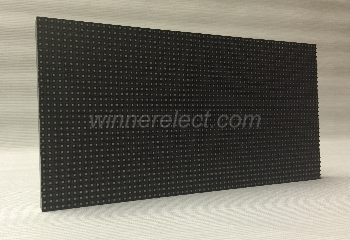

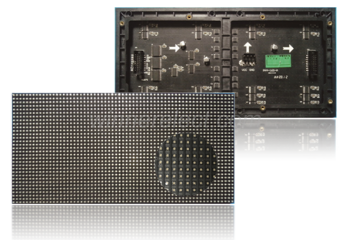

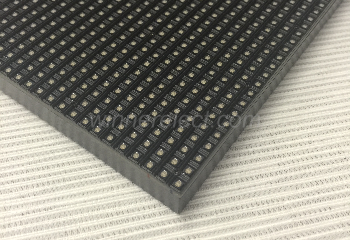

P4 Indoor Full color Module

  • High brightness /refresh rate
  • Vivid and colorful display
  • Impact resistant,adapt to kinds of weather
  • Energy-saving, high luminance,low thermal, environment-friendly

  • Product Description:

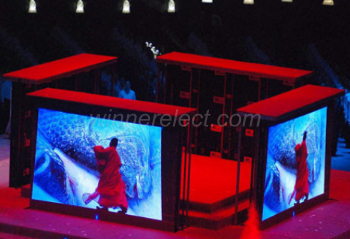

    Video display for advertisement, Such as live broadcast for news, sport, concert…etc. Information display for time, schedule, text and dynamic display for logo, text, video

    Key Features

    Ultra brightness LED and high quality plastic parts
    High contrast will reach excellent display effect
    Constant voltage mode drives LED, inform luminance, low power consumption
    Every pixel is composed of 1R1G1B
    Simple / Easy install & dismantle

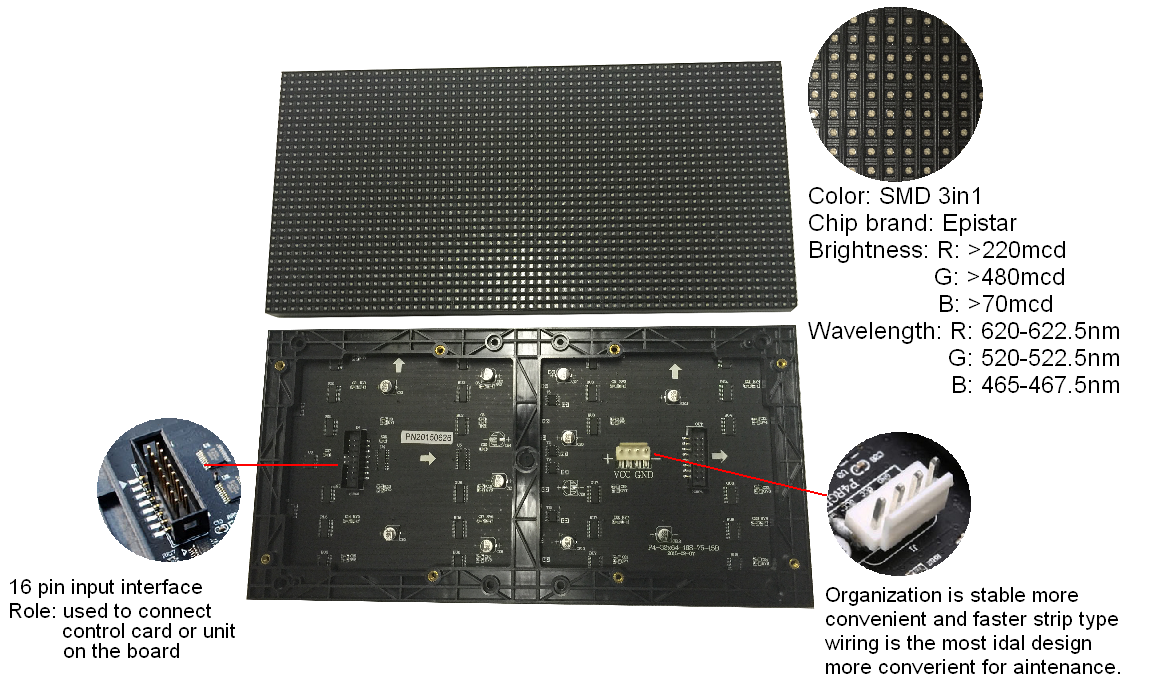

    Mechanical Diagram


    Item P4 SMD Full color module
    Pixel Pitch
    32x64 Dots
    Lamp Configuration
    1R+1G+1B (SMD2121 black lamp)
    Brightness >=2,300 cd/m²
    Viewing Angle 120°
    The Maximum Power Consumption
    <=1,300 W/m2
    Best Viewing Distance
    Color Temperature
    Power Voltage 100~240Vac; 50~60 Hz
    Physical Density
    62,500 /m²
    Driving Mode
    1/4 scans
    Life Time (from 100%~0%)
    100,000 hrs
    Working Temperature
    -20°C ~ +60°C
    Operating Humidity
    10% ~ 95% RH
    Refresh Rate
    >3,500 Hz/s
