Stage LED Screen

  • Ultra light and slim
  • Waterproof, dustproof, moisture proof
  • Anti-impact anf drop
  • can be used as floor led display

    • Product Description:

    Stage LED screen used for ultra slim led screen for concert With the light cabinet and good material , installation easily .

    Key Features

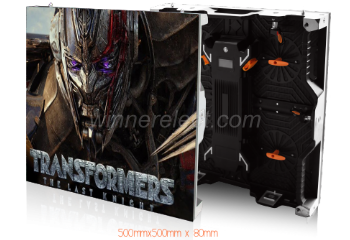

    • Ultra light and slim: Thickness: 80mm, Weight: 8.5kg/panel.
    • Support front and back service maintenance
    • Seamless: CNC precise Processing cabinet Die-casting aluminum, tolerance less than 0.1mm
    • Power supply and receiver card is integrated together
    • Innovative side position pin ensure the flatness of screen
    • Anti-knock design: The led lamp won't touch the ground and protect the led lamp very well

    Mechanical Diagram



    Specification

    Item SC-P2.604 SC-P3.91 SC-P4.81 SC-P3.91 SC-P4.81

    SC-P6.25

    Application Indoor
    		 Outdoor
    Pitch / mm P2.604
    		 P3.91 P4.81 P3.91 P4.81 P6.25
    LED Type SMD 2121 SMD 2121 SMD 2121 SMD 1921 SMD 2727 SMD 2727
    LEDs / Pixel 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B

    1R1G1B

    Module Resolution (dot)

    		250 x 250 250 x 250 250 x 250 250 x 250 250 x 250

    250 x 250

    Pixel Density (dot/m2)

    		147456 65536 43222 65536 43222

    25600

    Cabinet Pixel

    		192 x 192 128 x 128 104 x 104 192 x 192 104 x 104

    80 x 80

    Cabinet Dimen /mm

    		500x500x80
    		 500x500x80 500x500x80 500x500x80 500x500x80 500x500x80
    Cabinet Weight /kg 8.5 kgs
    		 8.5 kgs 8.5 kgs 8.5 kgs 8.5 kgs 8.5 kgs
    Cabinet Material Aluminum
    		 Aluminum Aluminum Aluminum Aluminum Aluminum
    IP (Front/Reverse) IP43
    		 IP43 IP43 IP65 / IP54 IP65 / IP54 IP65 / IP54

    Brightness, cd/m2

    		>1200cd/m2
    		 >1200cd/m2 >1200cd/m2 >4000cd/m2 >4500cd/m2 >5000cd/m2
    Colour Gray scale
    		 14-16 bit
    		 14-16 bit 14-16 bit 14-16 bit 14-16 bit 14-16 bit
    Viewing Angle 140o / 120o 140o / 120o 140o / 120o 140o / 120o 140o / 120o 140o / 120o
    Refresh Rate
    		 >1920-3840Hz >1920-3840Hz >1920-3840Hz >1920-3840Hz >1920-3840Hz >1920-3840Hz
    Scan 1/32
    		 1/16 1/13 1/16 1/28 1/5
    Max Power Consumption 1175W/m2
    		 1000W/m2 850W/m2 1000W/m2 1000W/m2 1300W/m2
    Brightness Adj 256, manual / automatic
    Input Voltage AC110-220V, 50/60Hz
    MTBF /hours
    		 5000
    Life Span /hours 100,000
    Working Temp -20 to 50oC
    Humidity 15-85%
    Input Signal TXT, MPEG, JPEG, AVI...etc
