Product Description:
LED Supermarket Shelf Price Display are very convenience.

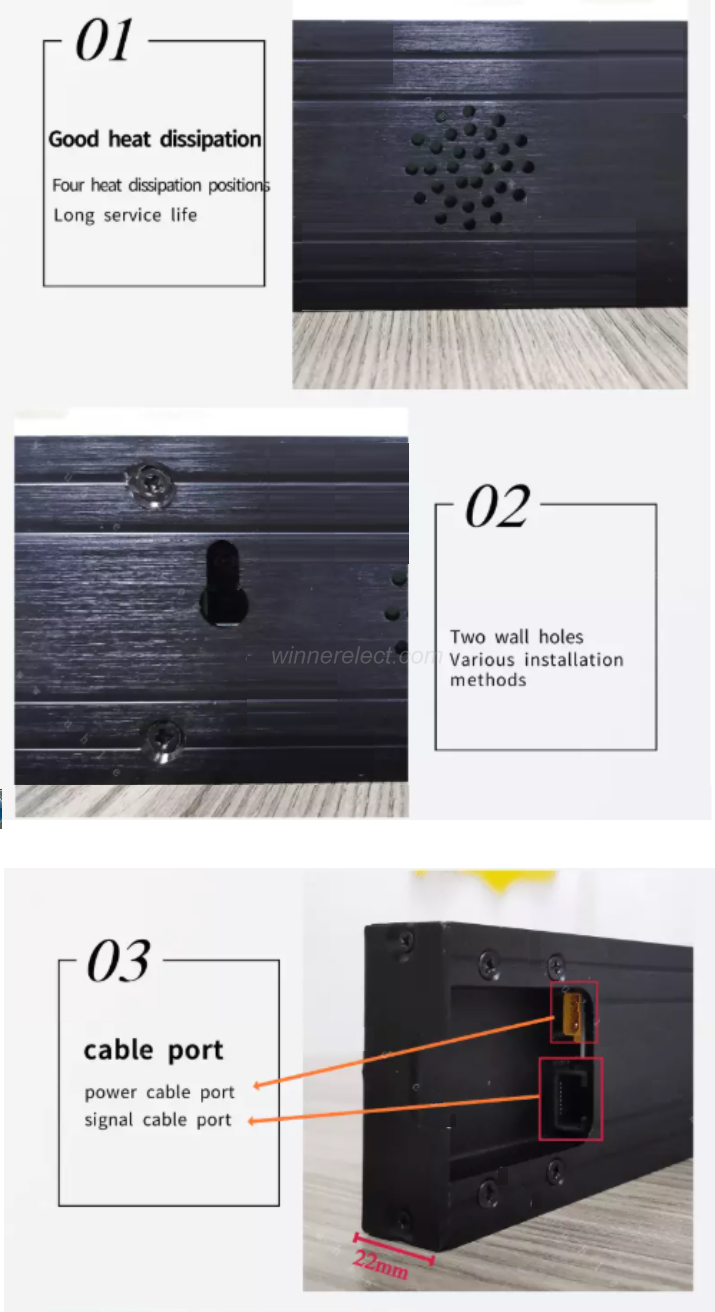

| • Excellent heat dissipation |
| • Support to play multi-format |
| • Hard connection, support hot-plug |
| • Support hook type installation |
| • Easy Installation |

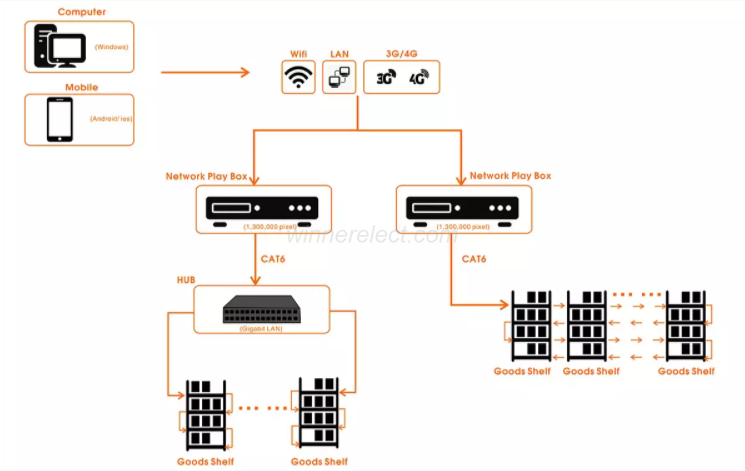

Product Installation
|
Parameters (Test Condition: 25oC |
||
|
Production Name |
Indoor Supermarket Shelf Price Display | |
|
Module Specification |
Pixel Type |
1.25mm |
|
LED Encapsulation |
COB | |
| Pixel Configuration | 1R1G1B | |
|
Driving IC |
ICN2065+ICN2018 | |
| Fresh Frequency | >3840Hz | |
|
Module Resolution |
120 x 45=5400 Dots | |
| Module Size | 150mm x 56.25mm | |
| Input Volyage (DC) | 4.2V | |
|
Max Voltage |
1.5A | |
| Module Max Power | 6.5W | |
|
Cabinet Parameter |
Driving Method |
1/45 |
|
Horizontal Viewing Angle |
>170 | |
|
Vertical Viewing Angle |
>170 | |
|
Brightness |
400~600 CD/sqm | |
|
Gray Level |
>14bit | |
|
Fresh Frequency |
>1920Hz | |
|
Cabinet Resolution |
240 x 45 , 480 x 45, 720 x 45 |
|
| Pixel Density (dot/sqm) | 640000 Dots/sqm | |

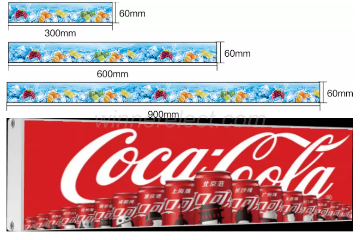

| Cabinet Size | 300 x 60mm, 600 x 60mm, 900 x 60mm | |
| MTBF | >100000 Hours | |
|
Life Span |
>50000 Hours | |
| Pixel Uncontrolled Rate | 0.3% | |
| HUB | 1EA | |
| Power Supply | DC5V The External Power Supply | |
| Condition | Working Condition |
Indoor |
|
Temperature Operating |
-40 to 60oC | |
|
Humidity Operating |
10% to 90% RH | |
| Storage Temperature | 0 to 40oC | |
| Storage Humidity | 40% to 60% RH | |
