Indoor LED Display

LY Plus

Clear Vision

Brilliant Visual Brightness

Wide Viewing Angle

Anti-glare Display

Product Description:

It adopts pentagonal and V-shaped pattern design elements as a whole, which is full of fashion sense. It is a new generation of stylish and beautiful indoor and outdoor rental screens. Simple and prac

Key Features

• Excellent heat dissipation

• Support to play multi-format

• Hard connection, support hot-plug

• Support hook type installation

• Easy Installation

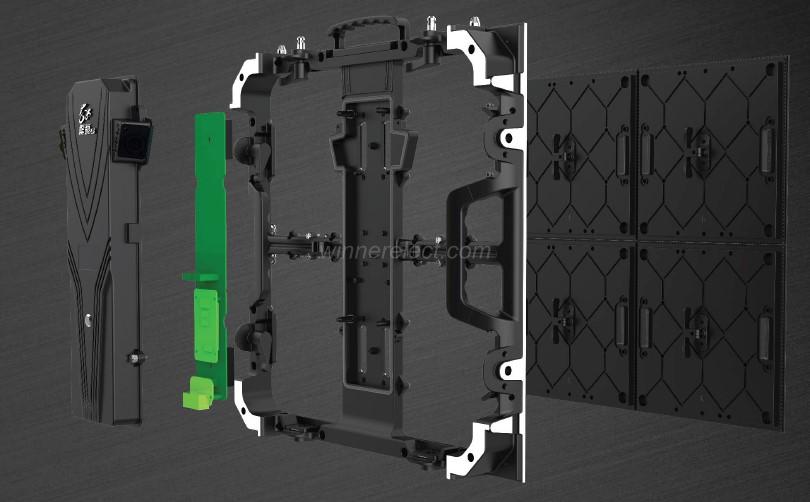

Mechanical Diagram

Specification

Parameters
Item	LY Plus - P.1.5625	LY Plus - P2.604	LY Plus - P3.91	LY Plus - P3.91
Pixel Pitch	1.5625mm	2.604mm	3.91mm	3.91mm
LED Lamp	SMD1212	SMD1515	SMD1921	SMD2121
Pixel Density	409600pixel/m²	147456pixel/m²	65536pixel/m²	65536pixel/m²
Brightness	>450nit, @white balance	>800nit, @white balance	>4000nit, @ white balance	>800nit, @white balance
Module Resolution	160 x 160	96 x 96	64 x 64	64 x 64
Drive Mode	1/40s	1/16s	1/16s	1/16s
Cabinet Size	500 x 500 x 62.5/mm	500 x 500 x 62.5/mm	500 x 500 x 62.5/mm	500 x 500 x 62.5/mm
Cabinet Resolution	320 x 320 pixel	192 x 192pixel	128 x 128pixel	128 x 128pixel
Cabinet Weight	6.5kg	6.5kg	6.5kg	6.5kg
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Max. Power Consump	<800w/m²	<800w/m²	<800w/m²	<800w/m²
Ave. Power Consump	<450w/m²	<450w/m²	<450w/m²	<450w/m²
Viewing Angle	H:140^o V:140^o	H:140^o V:140^o	H:140^o V:140^o	H:140^o V:140^o
Refresh Rate	>3840Hz	>3840Hz	>3840Hz	>3840Hz
Gray Level	16384 level	16384 level	16384 level	16384 level
IP Rating	IP50	IP50	IP65	IP50
Lamp Surface Protection	GOB	Mask or GOB	Mask	Mask or GOB
LifeSpan	>100,000H	>100,000H	>100,000H	>100,000H
Maintenance	Front & Rear Service	Front & Rear Service	Front & Rear Service	Front & Rear Service
Working Environment	-20^oC~ +50^oC, RH = 40~90%	-20^oC~ +50⁰C, RH=40~90%	-20^oC~ +50^oC, RH=40~90%	-20^oC~ +50^oC, RH=40~90%
Application	Indoor	Indoor	Outdoor	Indoor
